Wingstop Samyan Mitrtown LED Display: More than just showing images, it creates a captivating atmosphere for the entire restaurant.

Another successful installation by STEP SOLUTIONS Co., Ltd., involving the design and implementation of an Indoor LED Display system for Wingstop at Samyan Mitrtown branch.

The challenge for this project was not just to install screens for displaying images or in-store promotions, but to seamlessly integrate the LED display with the architectural design and perfectly complement the restaurant's unique ambiance.

Because each wall, each corner, and each area has a unique shape.

Therefore, the design of the display had to begin with the "actual space," not with standard off-the-shelf screen sizes.

Custom-designed to fit the space.

For this project, Indoor LED with P2.5 resolution was selected, and the installation was custom-designed in three configurations to suit each specific location within the restaurant.

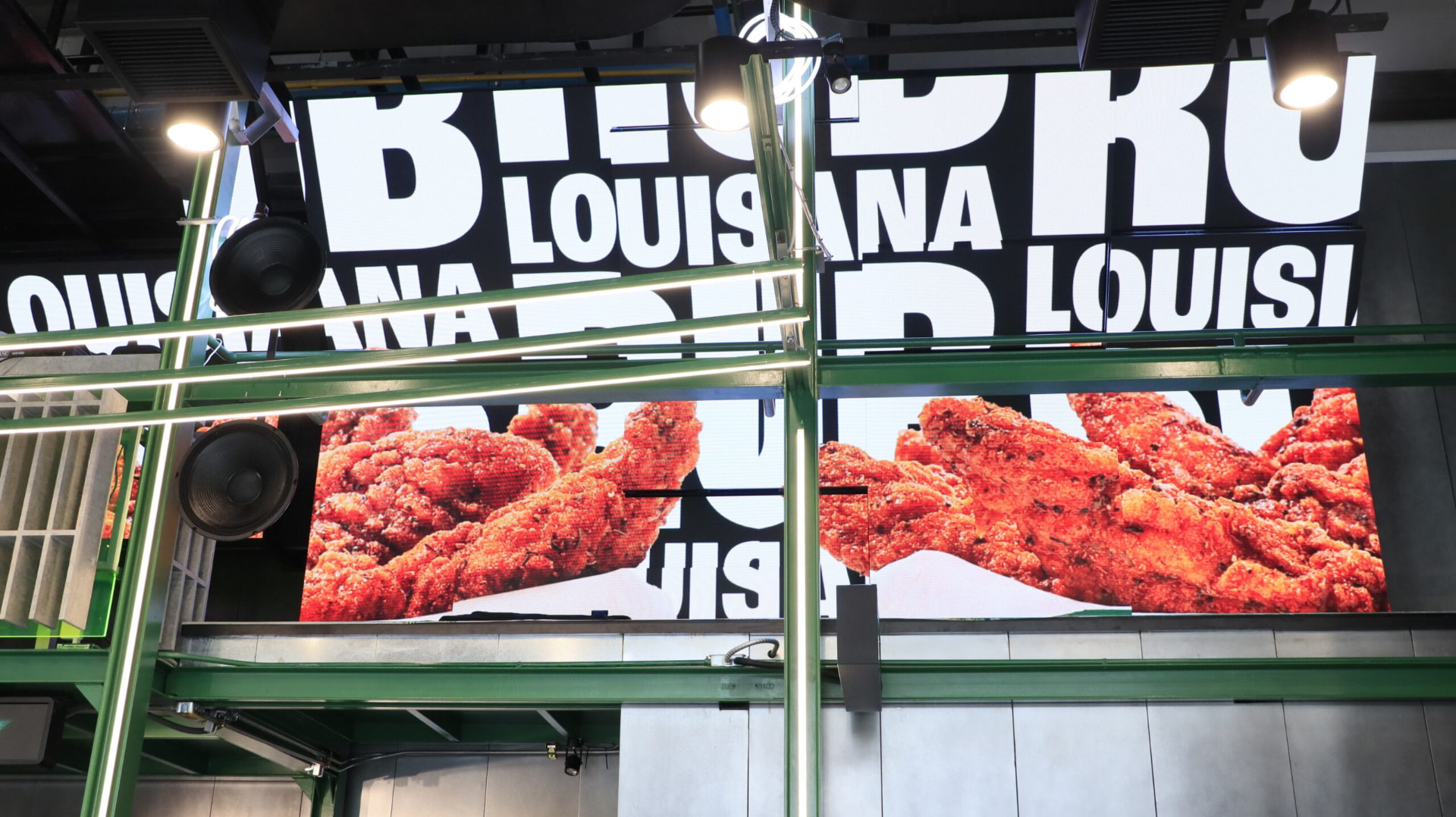

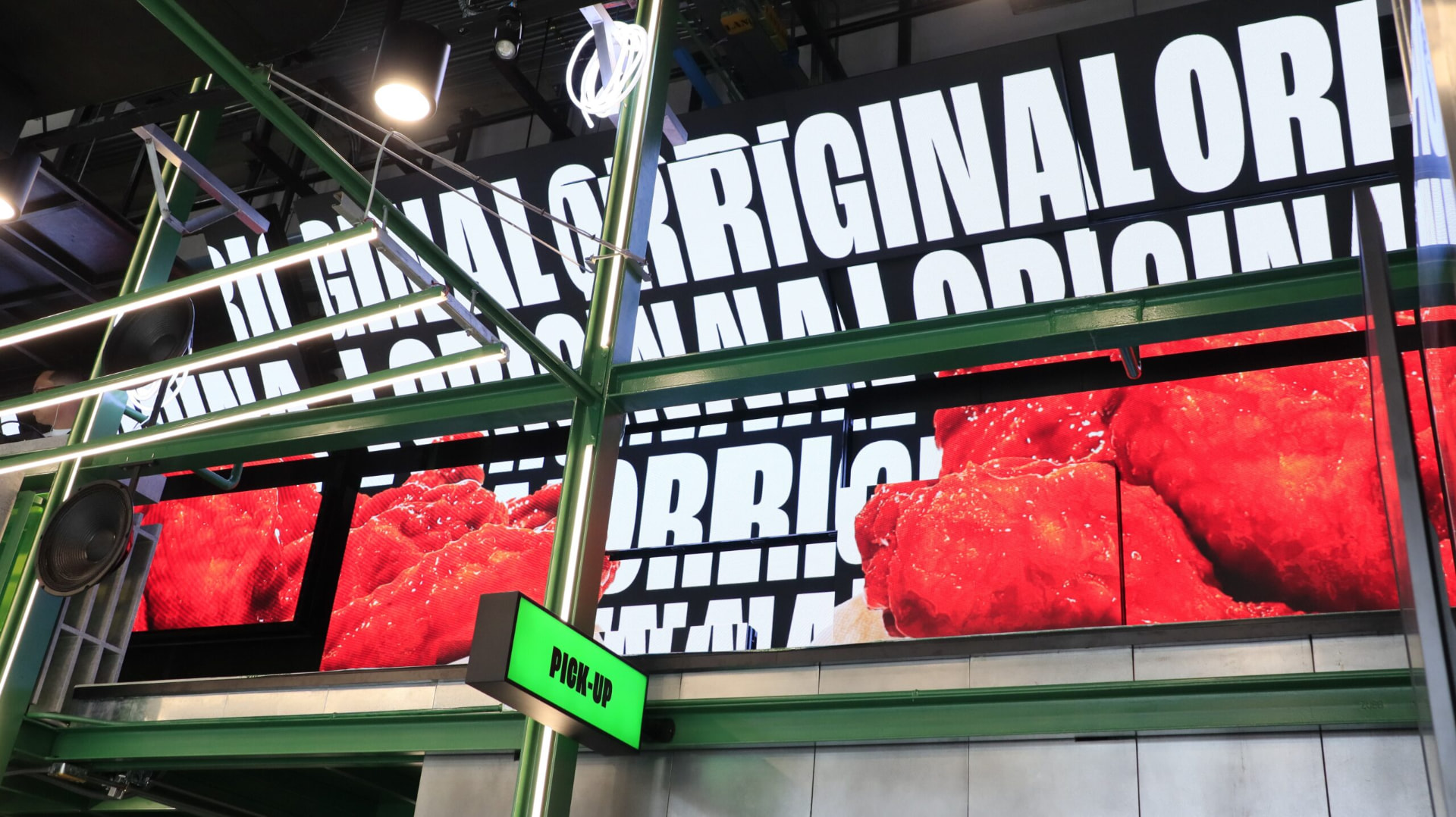

Artistic Wall LED

One of the project's highlights is the uniquely shaped LED display, custom-designed to follow the contours of the restaurant's wall.

A total of 348 LED modules were utilized, covering an area of approximately 17.82 square meters.

Instead of merely attaching a display to the wall, this project was designed so that the LED's form seamlessly integrates with the spatial elements. This transforms the wall into a dynamic canvas for showcasing images, colors, and content, bringing the restaurant to life with an enhanced atmosphere.

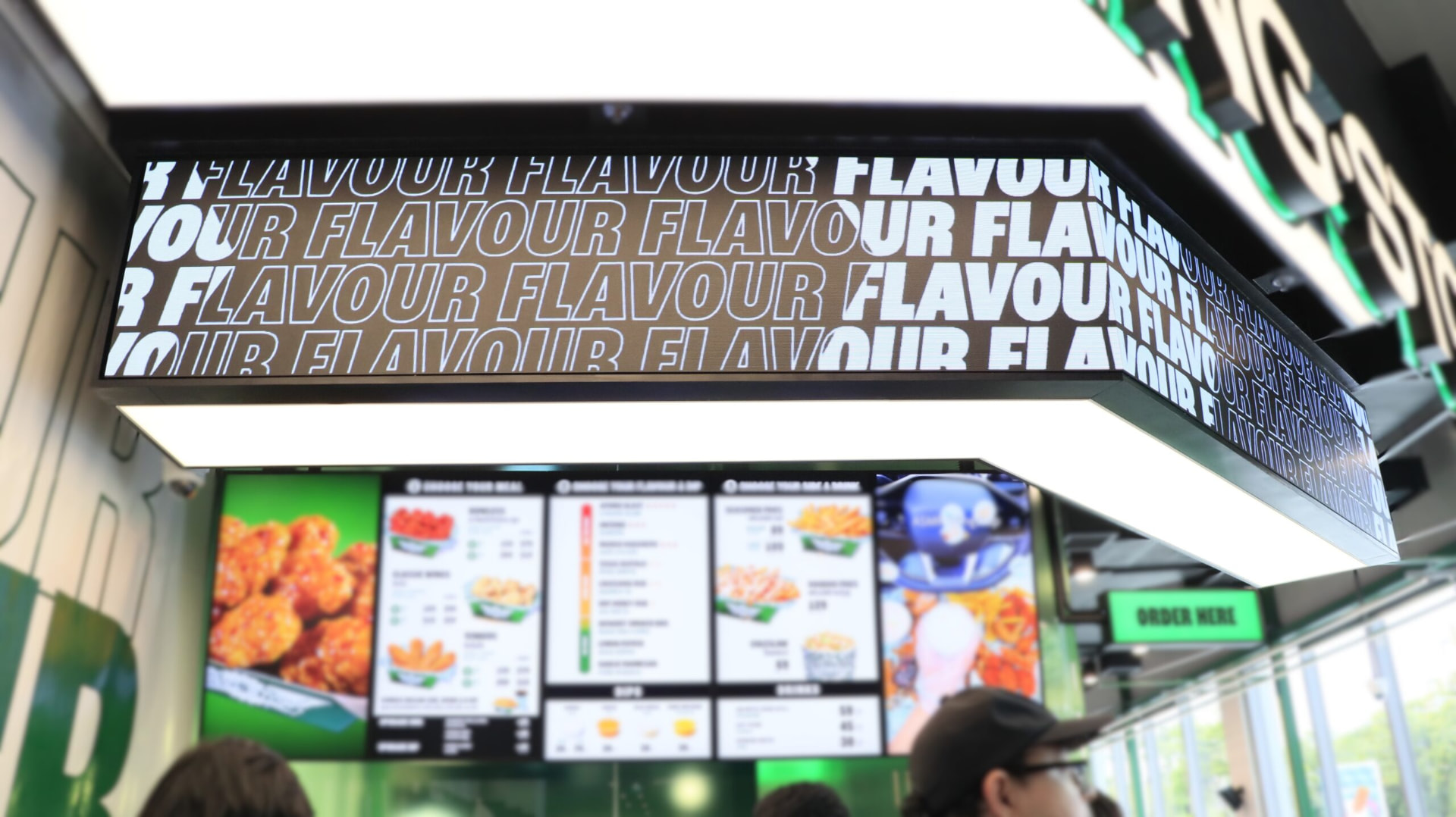

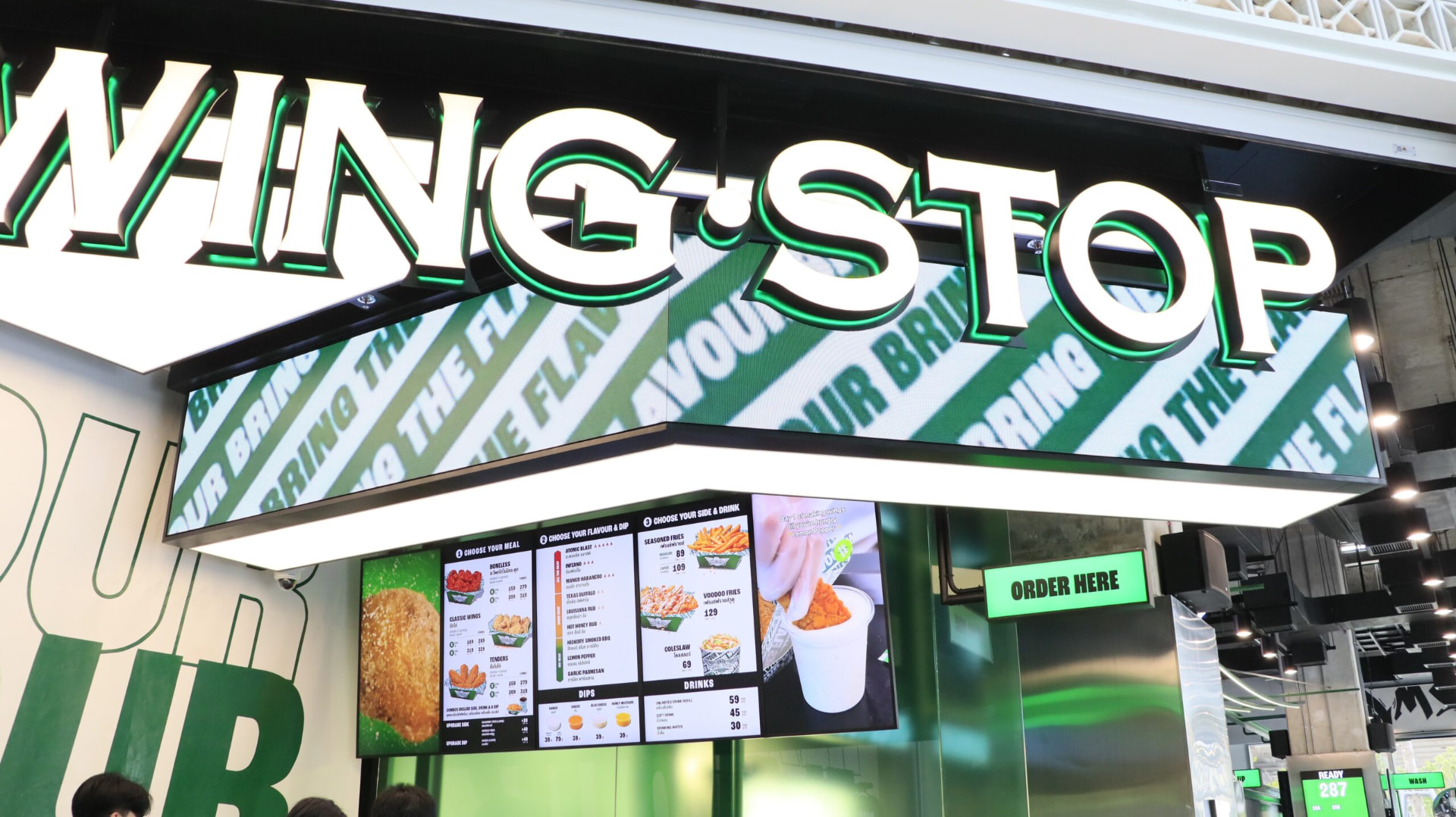

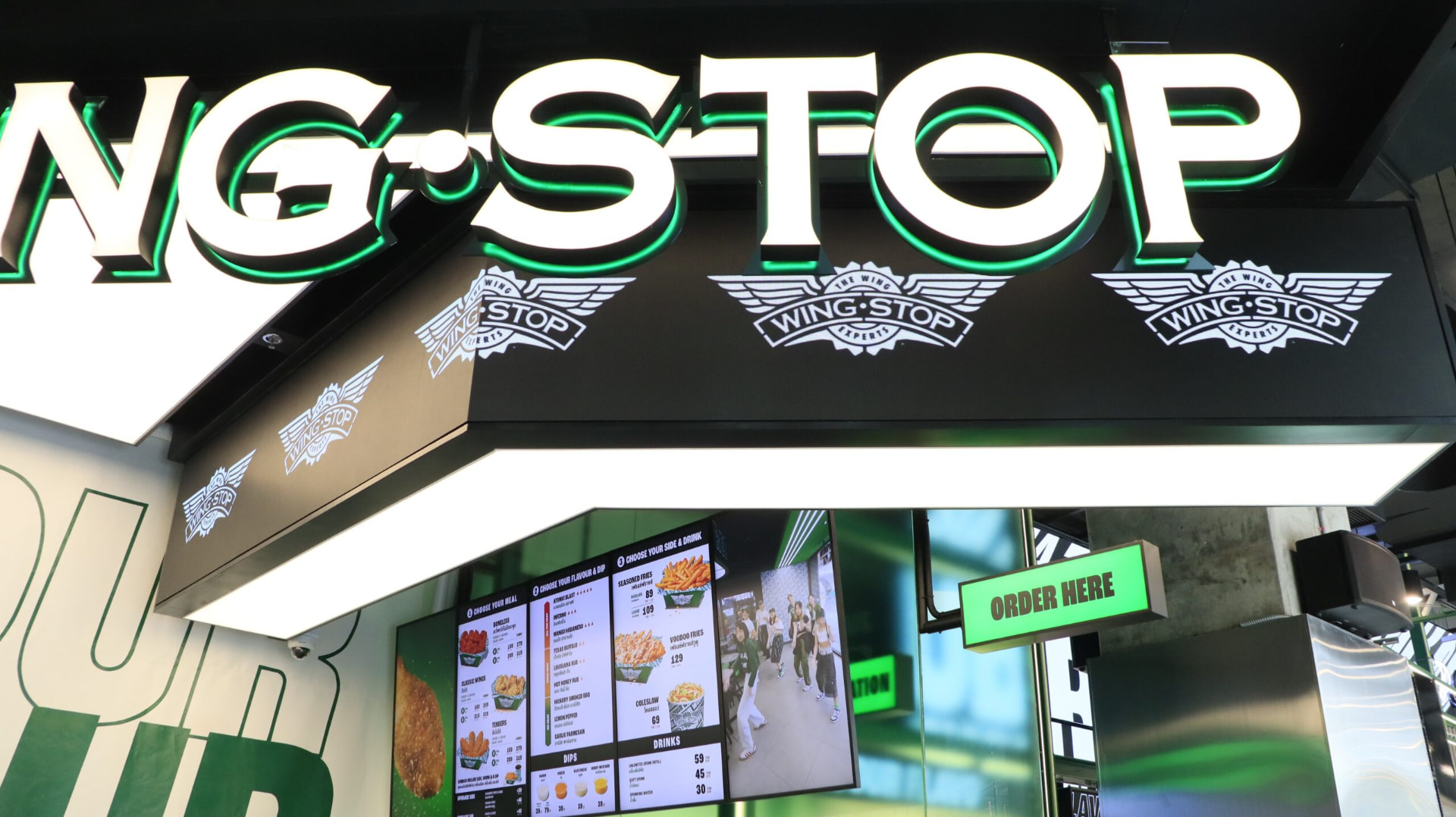

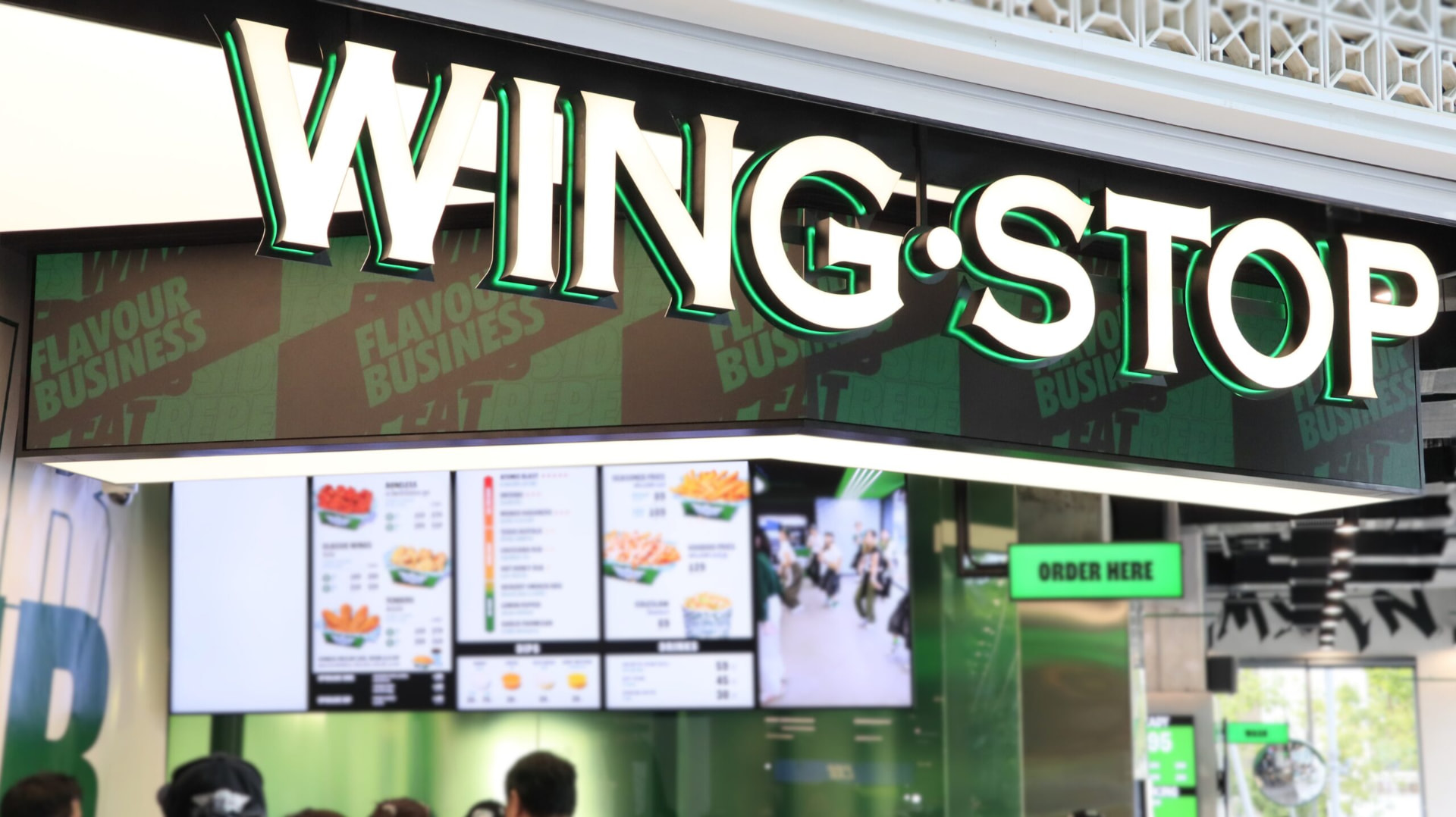

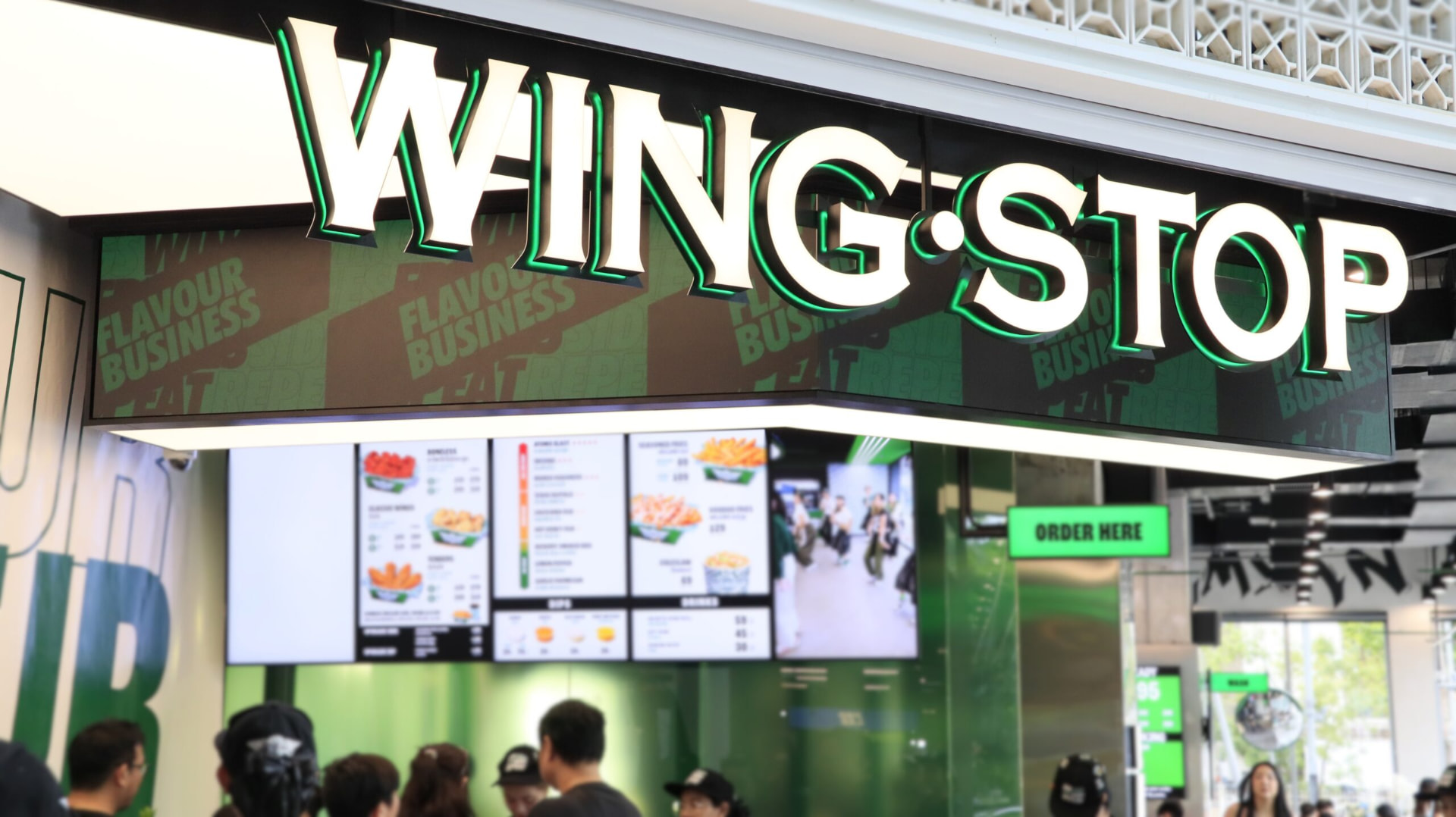

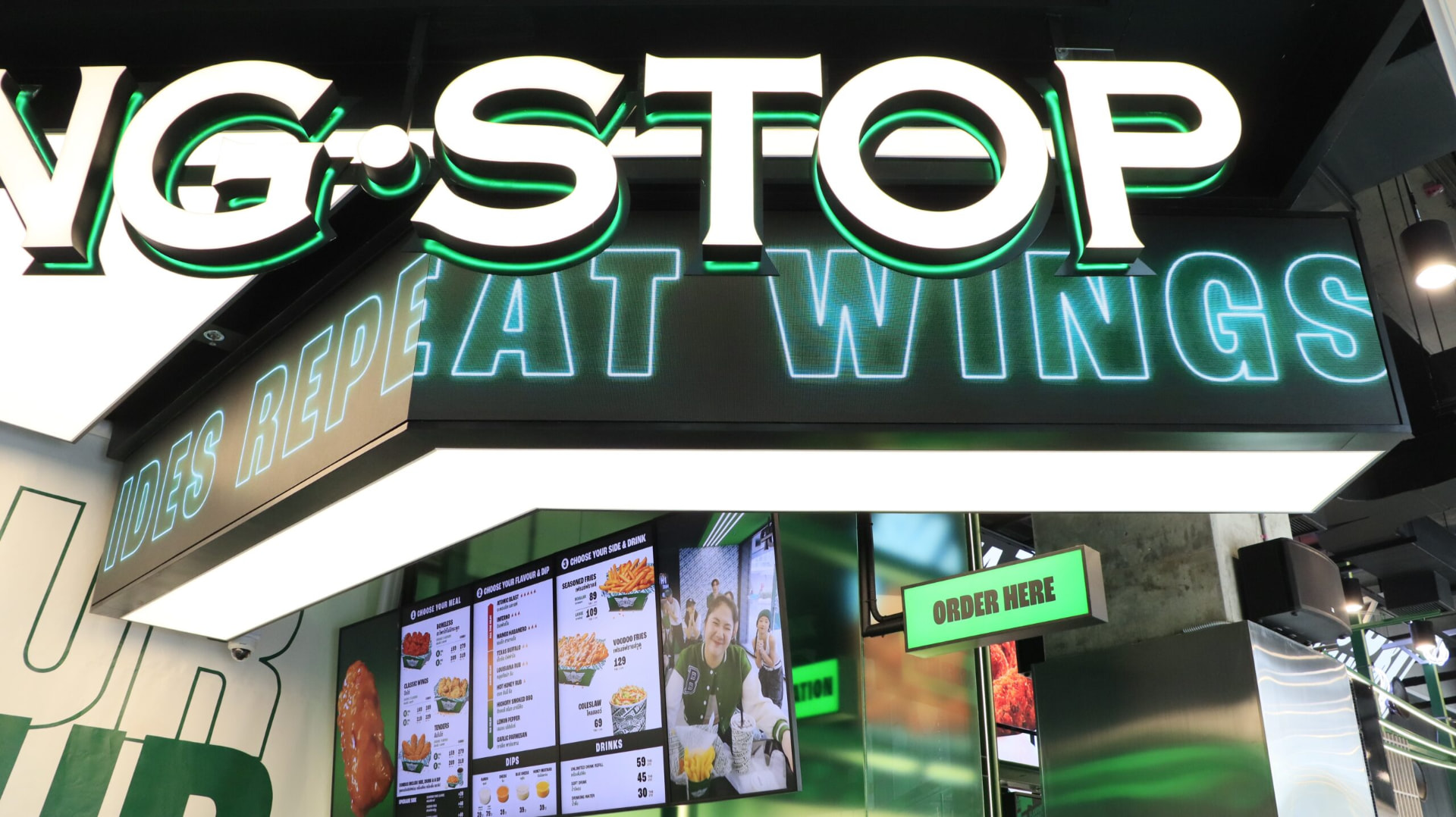

Angled Wall LED

Another location features a long, linear LED display measuring 5.12 × 0.64 meters, covering approximately 3.28 square meters.

The display was designed to conform to the wall's angle, allowing images to flow continuously and naturally along the spatial contours.

With a resolution of 2,048 × 256 Pixels, content is displayed with exceptional clarity, adding definition and dimension to the interior design without making the screen appear separate from the surrounding aesthetics.

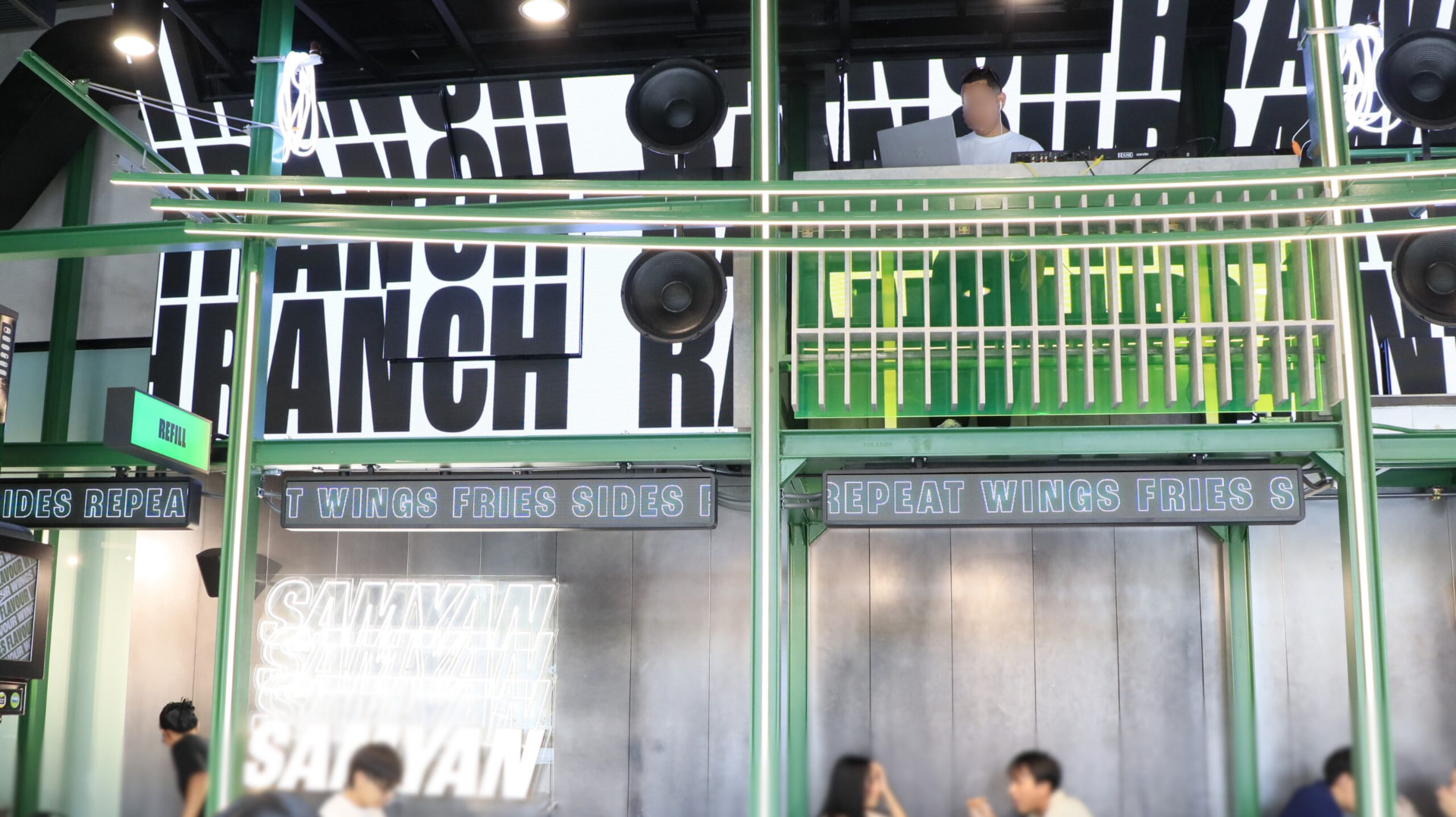

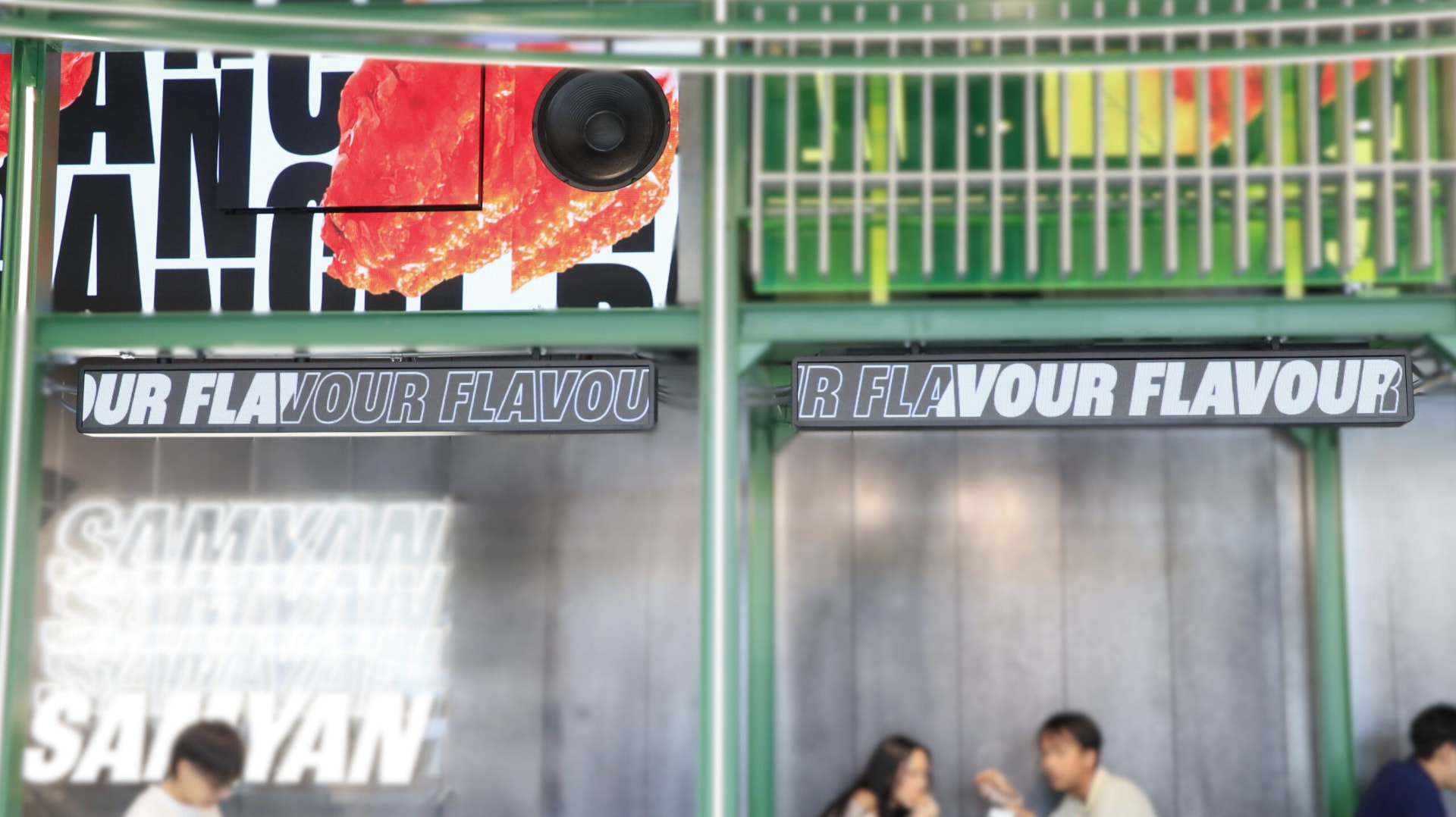

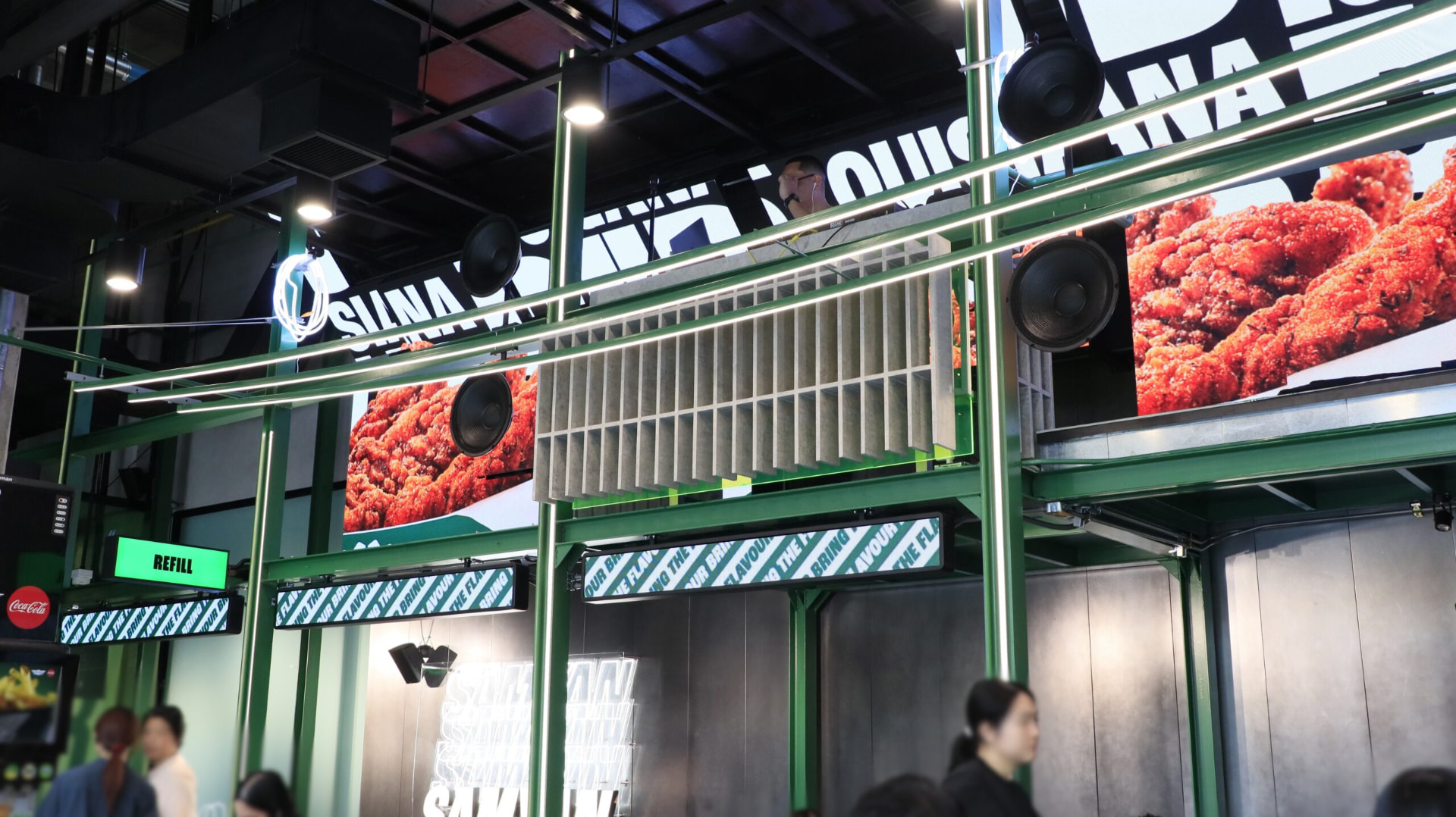

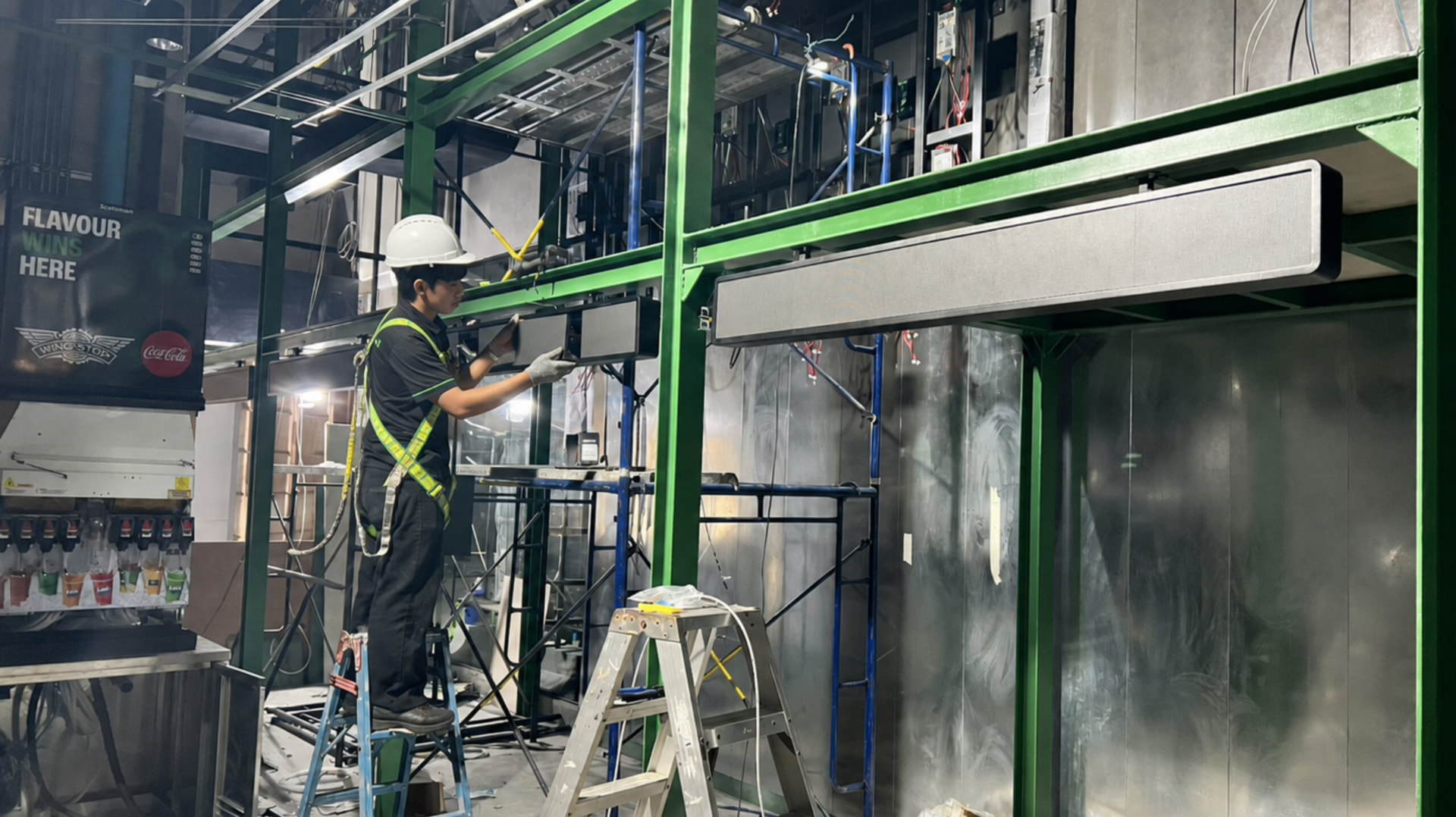

LED Box Display

Enhancing the space with 4 sets of LED Boxes.

Each set measures 1.60 × 0.16 meters with a resolution of 640 × 64 Pixels.

The elongated shape adds rhythm to the area and can be used to display graphics, promotions, or various messages, all while maintaining a sleek appearance and integrating seamlessly into the store's design.

Stunning visuals require a ready-to-use system.

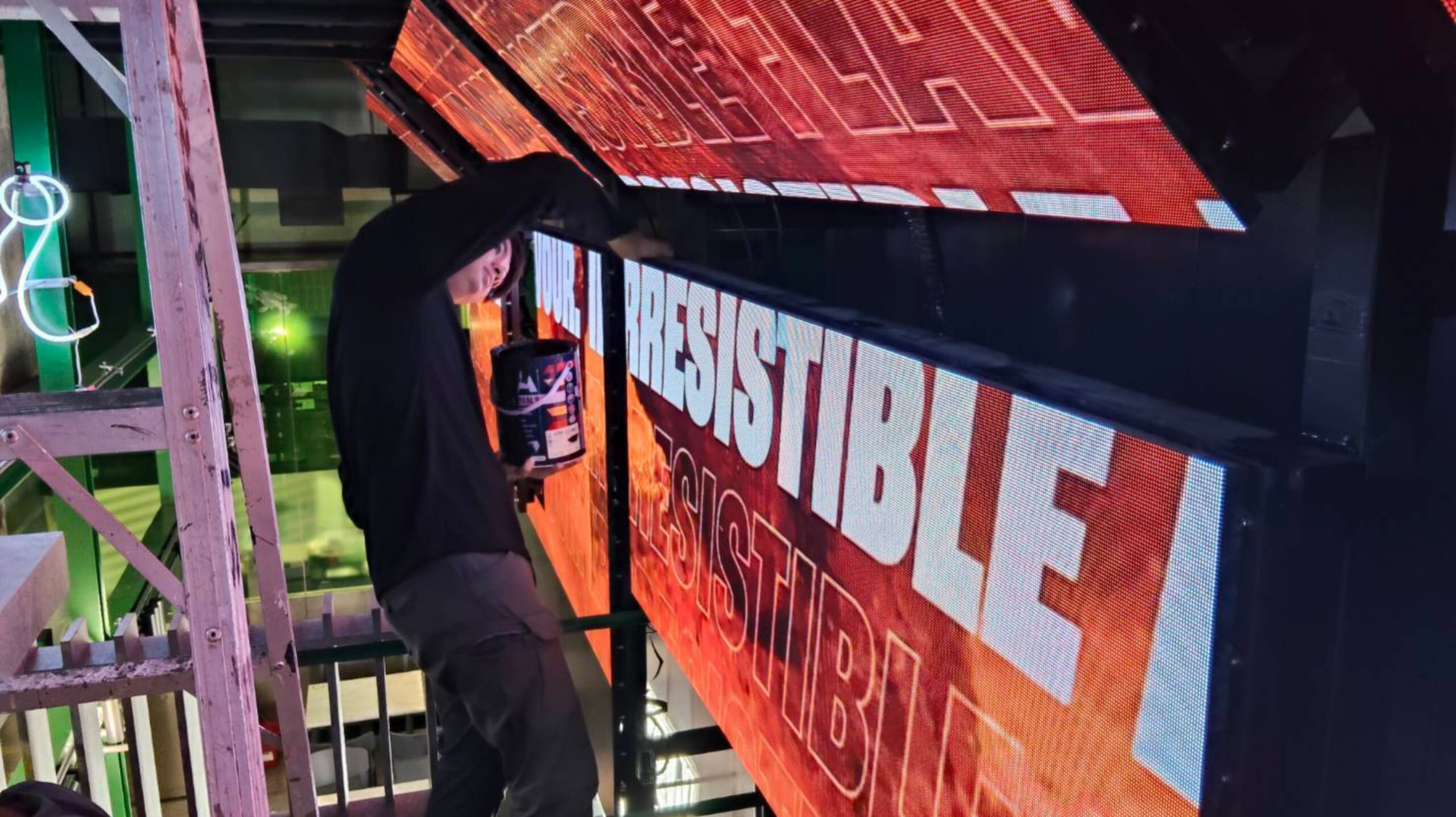

Behind every LED display point, a comprehensive system is in place, including an LED Controller, Digital Signage Player, installation structure, and a content management system. This setup ensures readiness to adapt media content for promotions, campaigns, or the store's communication needs at different times.

The display features a 3,840 Hz Refresh Rate and 700 nits brightness, making it ideal for indoor applications. This ensures smooth motion, vibrant colors, and crystal-clear content details.

More than just installing displays, it's about designing spatial experiences.

The appeal of this project isn't solely in the number or size of the displays, but in the strategic application of various LED formats to suit the actual space—from uniquely shaped walls and angled surfaces to elongated displays integrated into the store's intricate details.

Each display serves a distinct function and possesses a unique form.

Yet, when positioned within the same environment, every component seamlessly collaborates to create a cohesive visual experience.

This exemplifies Step Solutions' approach to designing LED systems, where our perspective extends beyond merely asking,

“What size display can fit in this space?” Instead, we ask, “How can we design the display to make this space truly stand out?”

Because a superior LED display does more than just show images.

It genuinely creates ambiance, adds character, and becomes an integral part of the space.
